YENUO Heavy Duty Drawer Slides with Lock 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 44 48 52 56 60 Inch Full Extension Side Mount Ball Bearing Locking Rails Track Glides Runners Load 460 Lbs 1 Pair
Product details
| Management number | 208218403 | Release Date | 2026/03/22 | List Price | $31.36 | Model Number | 208218403 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Installation note】Suitable for drawers with an internal depth of ≥ 22"-24".The space between drawer and cabinet wall need to be 0.75in each at left and right side,total 1.5in ( inside cabinet width - outside drawer width= 1.5in )一 Note: without mounting screws included,you can purchase different M6 screws according to your specific installation scene.
- 【3-fold full extension】Slides Width: 3" (76mm)--length: 22" (not including lock length)--Fully extended length:44"(1100mm)---Maximum load-bearing: 440 lb/200 kg.The "3-fold full extension"enable the slides to fully extend, so the drawer can be pulled out completely, which allows for the entire drawer's storage to be accessed easily; Application range: Goods shelf, Industrial drawers,Mechanical Cabinets, RV, Truck, Vending machine,safety drawers, exhibition drawers, heavy truck drawers,etc.

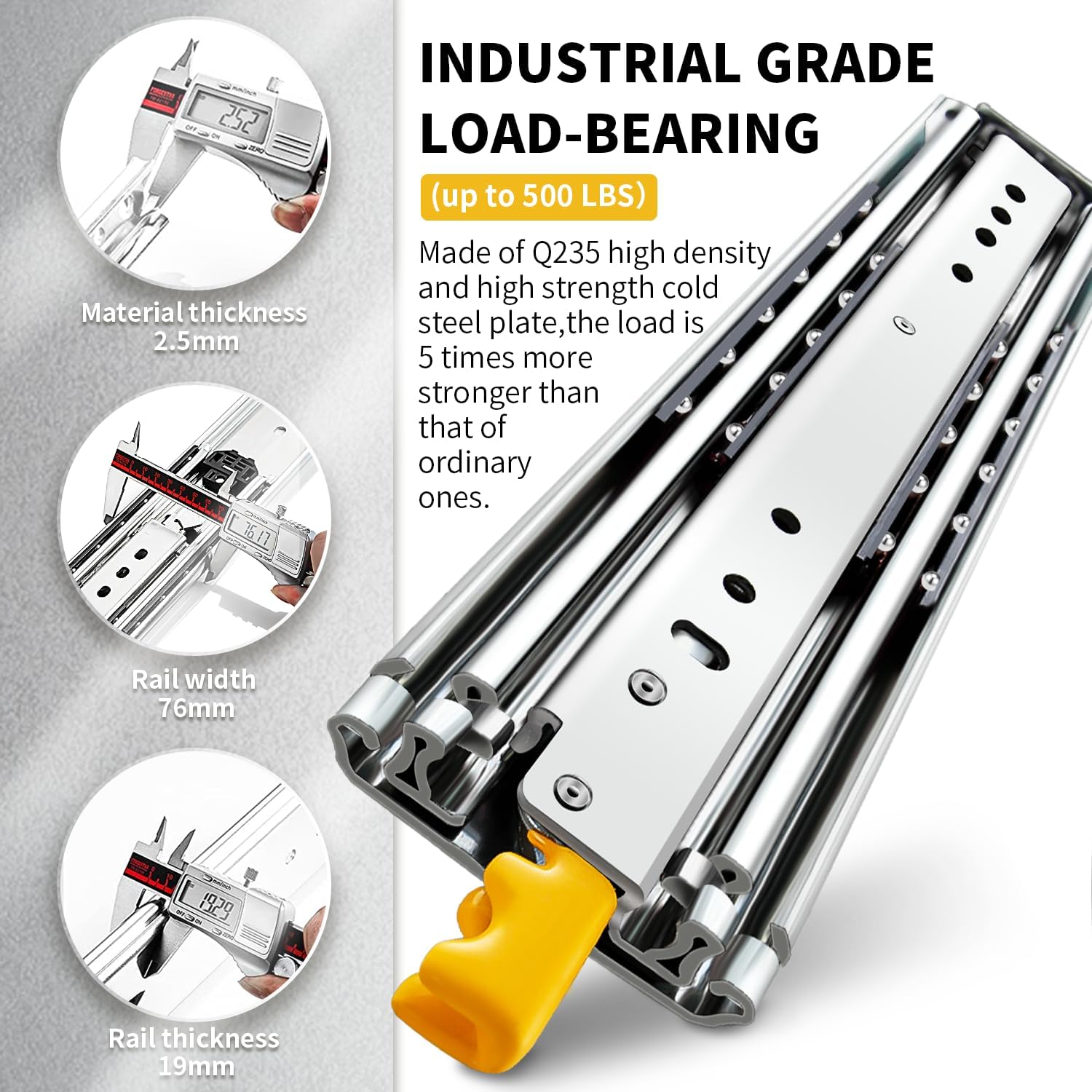

- 【MAXIMUM LOAD CAPACITY:460 lb】Made of Q235 steel plate, thickness 2.5mm, with high density and high strength, the carrying capacity is 5 times more stronger than that of ordinary ones. It will keep your drawers stable and safe even carrying up to 460 lb heavy weight items,which take opening and closing test 800,000 times under full loaded without damage.
- 【30 years service life】The drawer slides' surface are treated with electroplated blue zinc, therefor it's with oxidation resistance and anti-corrosion ability, the service life of the slide rail could be 30 years at least. Our motto is "Use quality slides,live quality life",besides the quality, YENUO also focused on after-sales service,any quality or installing problem please feel free to contact us.
- 【With hold-still lock】There is a yellow handle to lock and unlock.When it is fully extension or fully closed,the slides will be hold still automatically (in locking state),which can prevent from sliding casually and keep your drawer stable and safe. Press the lock handle on both sides of the pair of slides at the same time gently,it's unlocked and get back in free sliding.( length of yellow lock : 1.18"/30mm)
| UPC | 609636868345 |
|---|---|
| Size | 22 Inch |
| Style | With Lock- 1 Pr |
| Finish | Steel |
| Item Weight | 12.46 pounds |
| Part Number | With Lock |
| Manufacturer | Foshan yenuo Hardware Co., Ltd |
| Mounting Type | Side Mount |
| Number of Items | 1 |
| Item model number | Load:500 lb (With lock) -W:76mm |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 23 x 3 x 0.75 inches |
| Included Components | 1 pair of drawer slides, without installation screws |
