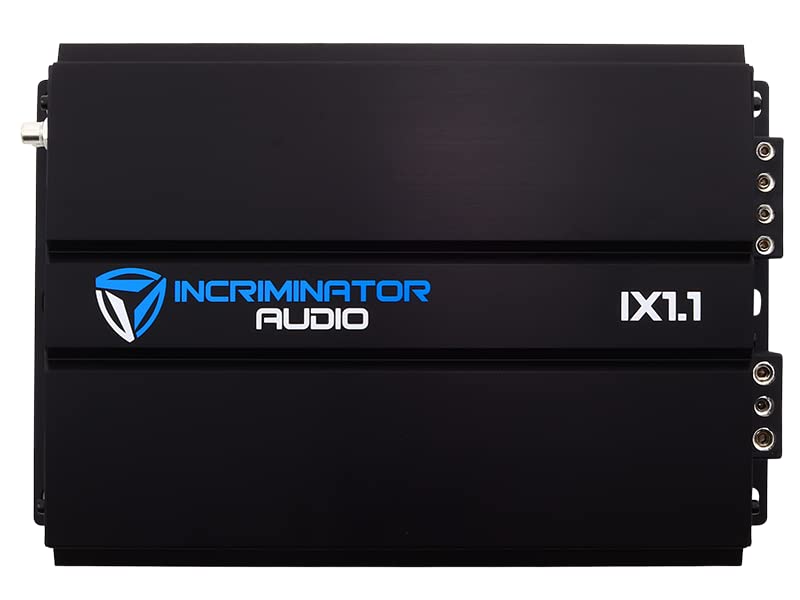

iX1.1 Monoblock 1200W RMS Class D Amplifier

iX1.1 | Incriminator Audio 1200W RMS Monoblock Class D AmplifierFEATURES: Digital Class-D Mono Block Amplifier Dual MOS-FET Pulse Width Modulation Power Supply 1 Ohm Topology 24 dB/octave - Variable State Subsonic Filter 24 dB/octave - Variable State Low Pass Filter 9 dB/octave - Variable State Bass Boost Heavy Duty Copper Layer Double Sided Epoxy PCB Advanced Strapping with Mirror Techology Multi-Layer Bullet Proof Protection Circuit (Themal, Voltage, Speaker Short, DC) Wired Remote Control with Clipping IndicatorSPECIFICATIONS: Rated Power ( 14.4V at 1% THD ) IX1.1 RMS Power - 2 Ohm Linked : 2400W RMS Power - 1 Ohm Mono : 1200W RMS Power - 2 Ohm Mono : 800W RMS Power - 4 Ohm Mono : 400W Low Pass Filter ( 24dB/Oct. ) : 35Hz - 250Hz Subsonic Filter ( 24dB/Oct. ) : 10Hz - 50Hz Frequency Response ( +/- 1dB ) : 12Hz - 250Hz Bass Boost ( 45Hz ) : 0 - 9dB Input Sensitivity ( Volt +/- 5% ) : 6.0V - 0.2V Signal / Noise Ratio : 95dB Dampening Factor ( 1 Ohm ) : 200 + Master/Slave/Mirror : Included Power Efficiency ( 4 Ohm ) : 94% Fuse Rating ( 14.4V ) : 120A Fuse Rating ( 14.4V Linked ) : 240A Segmented Power Input Connection : 4 AWG Operation Voltage : 8.5V - 16.0V Speaker Output Connection : 8 AWG Dimensions ( Inches ) : 7.48 W x 2.24 H x 9.84 L Dimensions ( Millimeters ) : 190 W x 57 H x 250 L

• We just reset the whole compact monoblock amplifier market with our new IX mono’s. That all starts with the IX1.1. You have less than a square foot to work with and you need a strong amp? We have you covered, at less than 10” long, the all new IX1.1 pours out 1200 watts at 1ohm mono (or 800 at 2 ohms) with ease.
• What that means, is you have power to spare to run a pair of quality subs or a single sub that needs over 1000 watts to get going. This would be a perfect mate to a Lethal Injection subwoofer. Running more than one powerful sub, but pinched on amp space? You can run multiple IX1.1’s in master/slave mode to keep the power on tap you need, while looking good doing it. All you would need to do is flip a switch and you will have your amps strapped and working as a team.
• Employing our multi-layer protection circuitry as well as a heavy duty, double sided PCB, you can relax knowing you will have years of reliable performance from a quality amplifier. With a built-in, adjustable subsonic filter, you can relax knowing your subwoofer will be protected too. With a high dampening factor as well as high signal to noise ratio, you will have excellent sound going to your subs from the entire IX line up.
