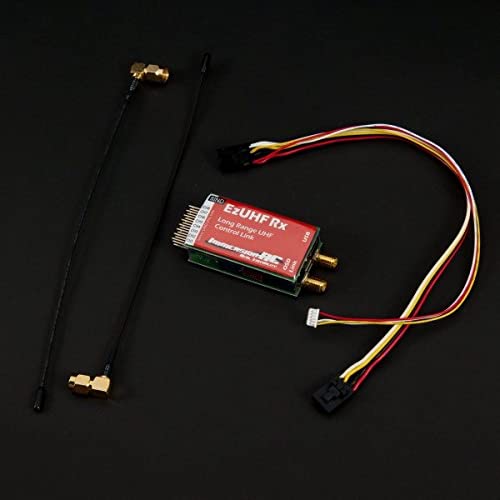

IRC ImmersionRC 112dbi EzUHF Receiver 8 Channel Diversity Long Range UHF Receiver RX for RC FPV Fixed-Wing Only 19g

ImmersionRC EzUHF Receiver 8 channel diversity Long Range Receiver RX for RC FPV Fixed-WingThe EzUHF 8 channel diversity receiver is a compact 8CH receiver for use with the ImmersionRC EzUHF system. It can provide long range control of your FPV model with the robust interference rejection that diversity antennas provide. Compact Long-Range R/C Receiver Ideal companion to the EzUHF transmitter. Sensitive receiver, with twin antenna inputs, in a diversity configuration. Fits the most slender of glider fuselages. Interference Rejection Each antenna input contains a 7-section ceramic low-pass filter, which silences interference from nearby high-power video transmitters on 900/1.2/2.4/... bands. Attenuation at 900MHz is > 40dB, at 2.4GHz > 75dB, right at the antenna input. Mikrokopter Compatibility Programmable MK mode, emits raw PPM on a chosen channel. The EzUHF Rx is an ideal receiver to use on Mikrokopters used for longer-range flights. The ceramic filtering is a huge benefit on a small MK frame, which has a Video Tx antenna nearby. EzLink connection to an EzOSD No more guessing! the EzLink cable connects the EzUHF to an EzOSD on-screen display. All critical parameters are sent to the OSD, which displays them live on the display and downlinks them along with the antenna-tracking telemetry. A ground-based EzAntennaTracker displays the parameters on its LCD display, and the ImmersionPlayer application plots them on its Google-Earth overlay. * Why ‘Bi-directional ready'?: The EzUHF Transmitter is a full transceiver, i.e. it includes both transmitter, and receiver hardware. The 8 Channel receiver is also a transceiver, so both are capable of bi-directional communications. Firmware to take advantage of these capabilities will available in the near future, both are field-upgradable using a std. USB cable. EzUHF Long-Range R/C Receiver, 8 Channel Compact, Sensitive, Diversity... Features: Reliable FHSS Link

• IRC ImmersionRC 112dbi EzUHF Receiver 8 channel diversity Long Range UHF Receiver RX for RC FPV Fixed-Wing Only 19g
