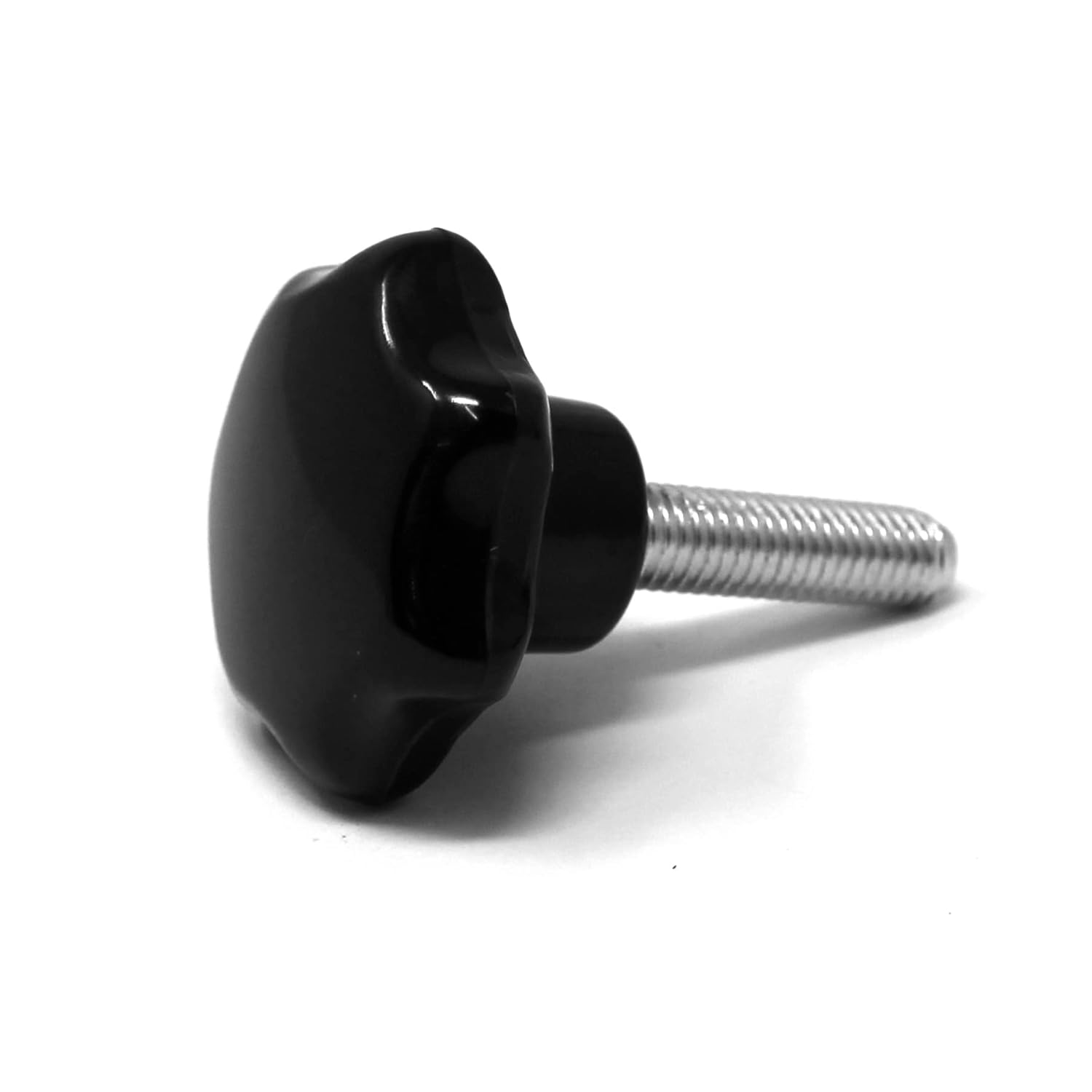

Ganter Standard Elements / Star Grip Screw with Male Thread According to DIN 6336 M6 x 25 mm / Duroplast / Threaded Rod Galvanised Steel / Star Diameter 32 mm (1 Piece, M6 x 25 mm (32))

Our star screws or star nuts with external thread come from Ganter standard elements and are made of heat-resistant Duroplast PF31. Due to the high quality requirements, you will receive a product with excellent tear resistance, high temperature resistance and corrosion resistance. As these handle screws are equipped with a metric thread, they can be quickly and easily screwed into an existing internal thread. The handle screws are characterised by their ergonomic shape in star look and therefore fit comfortably in your hand at all times. In addition, they can be easily put on and removed by hand and thus make tools unnecessary. Thanks to the use of high-quality galvanised steel, these handles can be used not only in dry but also in damp rooms and in protected outdoor areas. The star grip screws are mainly used where all controls are necessary and are therefore one of the classics of the operating parts. Application can be found in these areas: - Mechanical engineering. - Furniture construction. - Photographic equipment - Household appliances. - etc. Product features: Metric external thread. According to standard: DIN 6336. High-quality galvanised steel and Duroplast PF31. Available in various variations, lengths and sizes

• Star grip screw according to DIN 6336 shape L
• Material properties: threaded rod = galvanised steel, star head = heat-resistant Duroplast PF31 (plastic, high-gloss polished)
• Size: thread (d2) = M6, thread length (l) = 32 mm, star handle diameter (d1) = 32 mm, star head height including collar (h1) = 20 mm, width of waistband (d3) = 14 mm
• Star handle nuts or star grip screws can be easily screwed in and out without tools
• Applications: mechanical engineering, furniture construction, photographic equipment, household appliances, etc.
